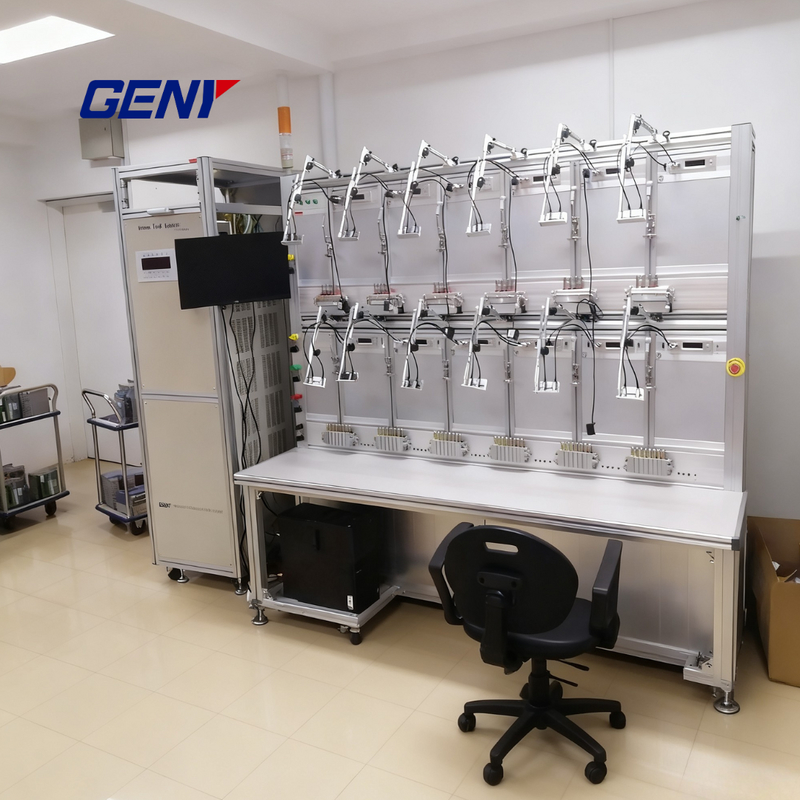

YC-1891D-24 Single-phase Electric Energy Meter Testing System Accurate

YC-1891D-24 Single-phase Electric Energy Meter Testing System Accurate

ブランド名: GENY
モデル番号: YC1893D/YC1891D
MOQ: 1個
価格: 交渉可能
支払条件: L/C、T/T、D/P
供給能力: 100/年
詳細情報
起源の場所:
中国
証明:
ISO, CE
テスト電圧 (中性相):
3 × (24 V - 500 V) またはカスタマイズ
試験電流::
3×(1mA~120A)
設定精度:
最終範囲値で0.05%以上
安定性:
0.005%/h以上(積分時間150秒)
ゆがみ要因:
線形抵抗負荷の0.3%を超える
パッケージの詳細:
合板ケース
供給の能力:
100/年
ハイライト:

Single-phase electric energy meter tester

,

Stationary meter test system accurate

,

YC-1891D-24 energy meter tester

製品の説明
YC-1891D-24 Single-phase Electric Energy Meter Testing System Accurate
Smart Energy Meter Test System with Programmable Harmonics & High Accuracy

Guangzhou GENY Electric Co., Ltd Meter Test System is a high-precision solution designed for testing, calibration, and verification of single-phase and three-phase energy meters. Built with advanced control and measurement technology, it ensures exceptional accuracy, stability, and reliability under a wide range of environmental and electrical conditions. Perfect for laboratories, power utilities, and meter manufacturers.

Specifications
Power Source
Voltage Output
  • Test Voltage (Phase-Neutral): 3 × (24 V - 500 V) or customized
  • Output Power: 3 × 100 VA
  • Resolution: < 0.01% of full-scale range
  • Setting Accuracy: < 0.05% at final range value
  • Stability: < 0.005%/h (integration time 150 s)
  • Load Regulation (0-max): < 0.01%
  • Distortion Factor: < 0.3% (linear resistive load)
  • Harmonics: Programmable 2nd to 21st order
Current Output
  • Test Current: 3 × (1 mA - 120 A)
  • Output Power: 3 × 150 VA
  • Resolution: < 0.01% of full-scale range
  • Setting Accuracy: < 0.05% at final range value
  • Stability: < 0.005%/h (integration time 150 s)
  • Load Regulation (0-max): < 0.01%
  • Distortion Factor: < 0.3% (linear resistive load)
  • Harmonics: Programmable 2nd to 21st order
Phase Angle
  • Range: 0° - 360°
  • Resolution: 0.01°
  • Accuracy: ±0.1°
Frequency
  • Range: 45 Hz - 65 Hz
  • Resolution: 0.01 Hz
Key Features & Benefits
  • High-precision measurement with accuracy up to ±0.01%
  • Programmable harmonics for flexible testing (2nd-21st order)
  • Stable operation under wide temperature and humidity ranges
  • User-customizable voltage and current output ranges
  • Built-in surge protection and advanced grounding system
  • Ideal for energy meter calibration, power testing, and R&D applications
