| ブランド名: | GENY |
| モデル番号: | YC1893D-12 |
| MOQ: | 1 個 |
| 価格: | 交渉可能 |
| 支払条件: | L/C、T/T、D/P |

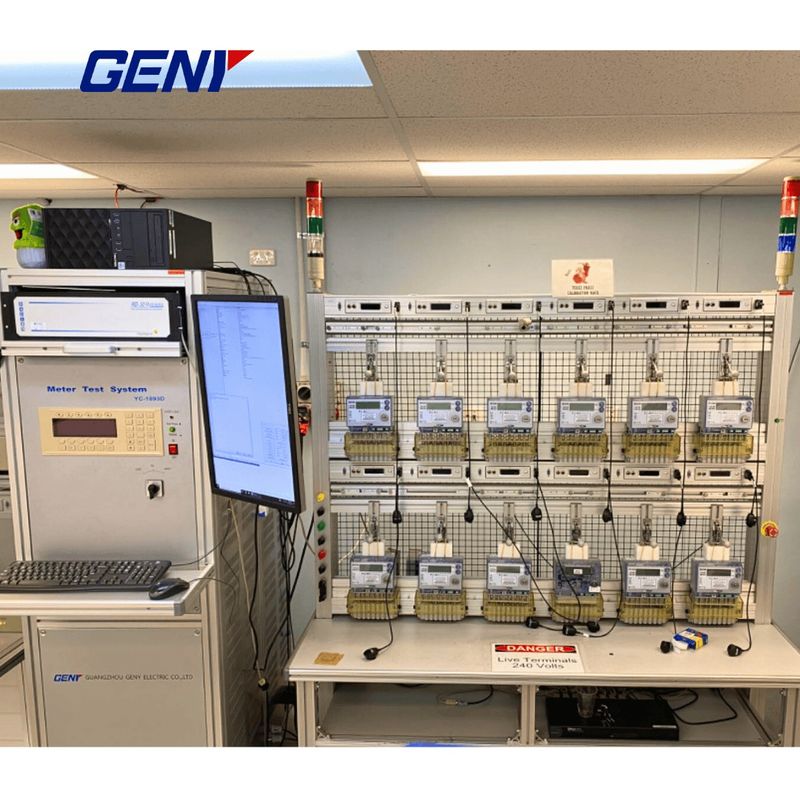

Guangzhou GENY Electric Co. Ltd. The YC-1893D series three-phase electricity meter calibration device is a versatile tool for calibrating various types of three-phase meters, including multifunctional, electronic, mechanical, and multi-user meters. It is widely used in power departments, meter manufacturing plants, metrology agencies, and industrial enterprises.
|
Main Technical Parameters |
Description |
|
Power Supply |
3P4W 3×380V±10%, 50Hz±2Hz |
|
Ambient Temperature |
-10℃ to +40℃ |
|
Ambient Humidity |
35% to 95% |
|
Output Voltage Range (Phase-to-Neutral) |
3×40V to 450V |
|
Output Voltage Power |
3×1000VA (Maximum) |
|
Voltage Resolution |
0.01% |
|
Voltage Stability |
0.02%/120s |
|
Load Change Rate |
0.01% |
|
Voltage Distortion |
≤0.3% |
|
Output Current Range |
3×1mA to 120A (Maximum up to 230A upon customer request) |
|
Output Current Power |
3×2000VA (Maximum) |
|
Current Resolution |
0.01% |
|
Current Stability |
0.02%/120s |
|
Load Change Rate |
0.01% |
|
Current Distortion |
≤0.3% (Full linear load range) |
|
Continuous Current |
100A |
|
Maximum Continuous 20-Minute Current |
120A |
|
Phase Adjustment Range |
0° to 360° |
|
Phase Resolution |
0.01° |
|
Frequency Adjustment Range |
45Hz to 65Hz |
|
Frequency Resolution |
0.01Hz |
|
Power Output Stability |
0.02%/120s |
