| ブランド名: | GENY |
| モデル番号: | YC1891D |
| MOQ: | 1pcs |
| 価格: | 交渉可能 |
| 支払条件: | L/C、T/T、D/P |
| 供給能力: | 1ヶ月あたりの30 PC |

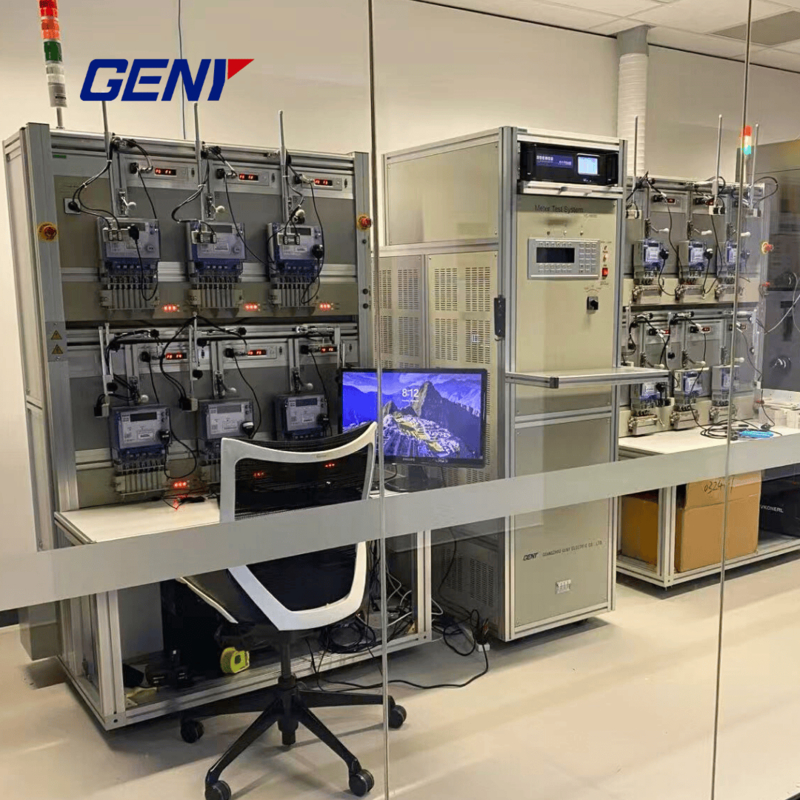

Guangzhou GENY Electric Co., Ltd. presents the GENY YC1891D Single-Phase Meter Test Bench—an all-in-one, IEC-compliant system that combines a programmable power source, precision reference meter and clock to deliver fast, traceable calibration of any single-phase meter for utilities, plants and manufacturers worldwide.
|
Main Technical Indicators |
Parameter Value |
|
Power Supply |
AC220V±10%, 50Hz±2Hz |
|
Ambient Temperature |
-10°C ... +40°C |
|
Ambient Humidity |
35% ... 95% |
|
Output Voltage Range |
24V ... 288V |
|
Output Voltage Power |
1000VA (Max) |
|
Voltage Resolution |
0.01% |
|
Voltage Stability |
0.02%/120s |
|
Load Change Rate |
0.01% |
|
Voltage Distortion |
≤0.3% (Full linear load range) |
|
Output Current Range |
1mA ... 120A (Up to 230A Max) |
|
Output Current Power |
2000VA (Max) |
|
Current Resolution |
0.01% |
|
Current Stability |
0.02%/120s |
|
Load Change Rate |
0.01% |
|
Current Distortion |
≤0.3% (Full linear load range) |
|
Continuous Current |
100A |
|
Phase Adjustment Range |
0° ... 360° |
|
Phase Resolution |
0.01° |
|
Frequency Adjustment Range |
45Hz ... 65Hz |
|
Frequency Resolution |
0.01Hz |
|
Power Output Stability |
0.02%/120s |
