Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy

Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy

ブランド名: GENY
モデル番号: YC1893D
MOQ: 1個のPC
価格: 交渉可能
支払条件: L/C、T/T、D/P
供給能力: 1か月あたり30個
詳細情報
起源の場所:
中国
証明:
ISO, CE
ドキュメント:
現在の出力をテストします:
3 × (0.3mA) 20A
現在の出力の電力:
3×1500va
出力電圧の電源:
3 × 1000VA
周波数範囲:
45Hz 65Hz
設定精度:
最終範囲値で0.05%以上
安定性:
0.005%/h以上 (統合時間150秒)
パッケージの詳細:
合板ケース
供給の能力:
1か月あたり30個
ハイライト:

24-Meter Positions Energy Meter Test Bench

,

60° Bevel Structure Stationary Meter Test Bench

,

0.05% Setting Accuracy Three-Phase Energy Meter Verification Bench

製品の説明

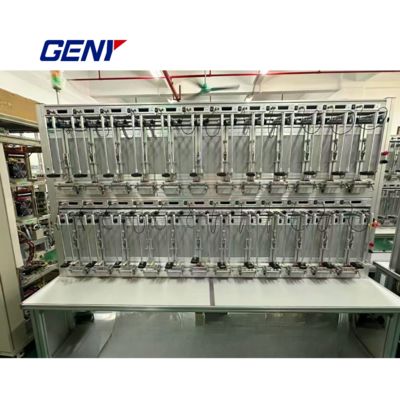

Customizable Three-Phase Energy Meter Verification Bench Customized Part 1. Automatic Suspension Test Rack Three-phase 24-meter positions distributed on two sets of meter racks Each rack has two rows arranged on one side with 6 positions per row Equipped with rotatable mechanism Suspension rack adopts 60° bevel structure (adjustable angle) relative to horizontal plane Complete protection against direct and indirect electric shocks Three-color indicator light on top of each
