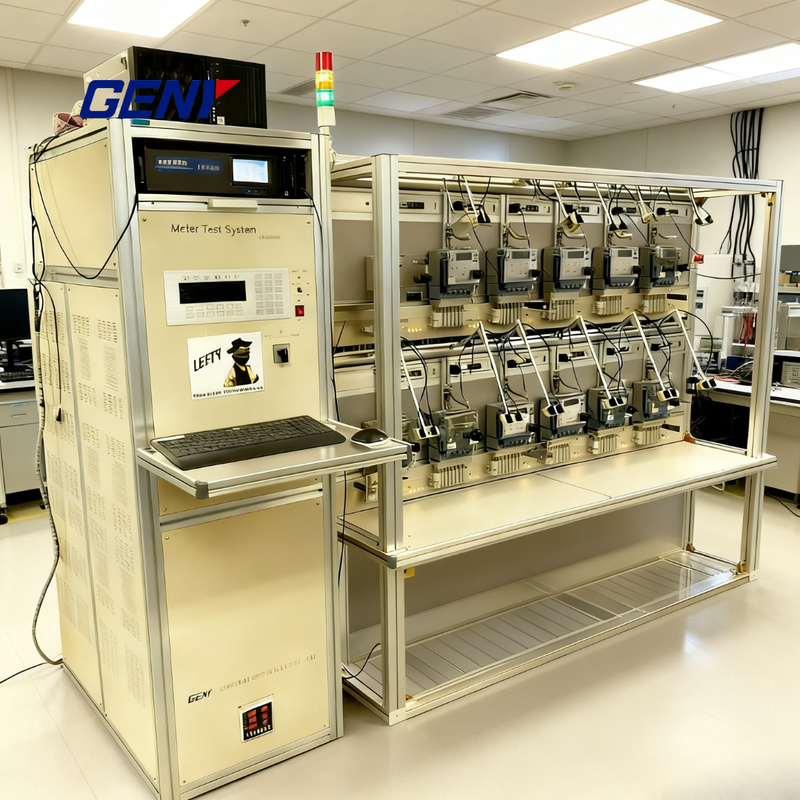

Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment

Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment

ブランド名: GENY
モデル番号: YC-1893d
MOQ: 1個
価格: 交渉可能
支払条件: L/C、T/T、D/P
供給能力: 100/年
詳細情報
起源の場所:
中国
証明:
ISO, CE
ドキュメント:
出力電流電力:
2800va(最大)
出力電圧電力:
2000va(最大)
周波数調整範囲:
45Hz ... 65Hz
連続電流:
100a
パッケージの詳細:
合板ケース
供給の能力:
100/年
ハイライト:

automatic three phase smart meter tester

,

high-precision meter testing equipment

,

24-position stationary meter test equipment

製品の説明
Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment
Key Features
  • Compatible with 3P4W, 3P3W, and 1P2W meters for versatile testing
  • Automatic, semi-automatic, or manual operation modes
  • Simultaneous testing of multiple meters with different constants
  • Automatic rotor mark positioning for higher efficiency
  • Supports active power, reactive power, and cross-connected reactive power tests
  • Neutral current test, starting test, and creeping test (optional)
  • Optional ICT installation for testing three-phase meters with closed I-P links
  • Overload, short-circuit, and open-circuit protection for safety
  • Lightweight aluminum alloy body—strong, durable, and corrosion-resistant
  • User-friendly Windows software for error test, harmonic test, and influence test
Mechanical Structure
Whole Structure

The rack and power source part is a whole set, not only the electric part is a whole connection, but also the structure is connected together.

Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment 0
Fig.3-1 Whole structure test bench
Separate Structure

The rack and power source part is separate. Power source part is in a standard cabinet, it is only has electric connection with rack, if without connector (cable plug or connection port), they are two separate part.

Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment 1
Fig.3-2 Separate structure test bench

A test bench has 1 or 2 rack; it is depend on the quantity of MUT or customer's requirement. The rack include single side or both side rack, single line or double line rack. Following is the structure of equipment (introduce as example as separate structure test bench)

Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment 2
Fig.3-3 Inner structure of separate structure test bench
Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment 3
Fig.3-4 Rack
