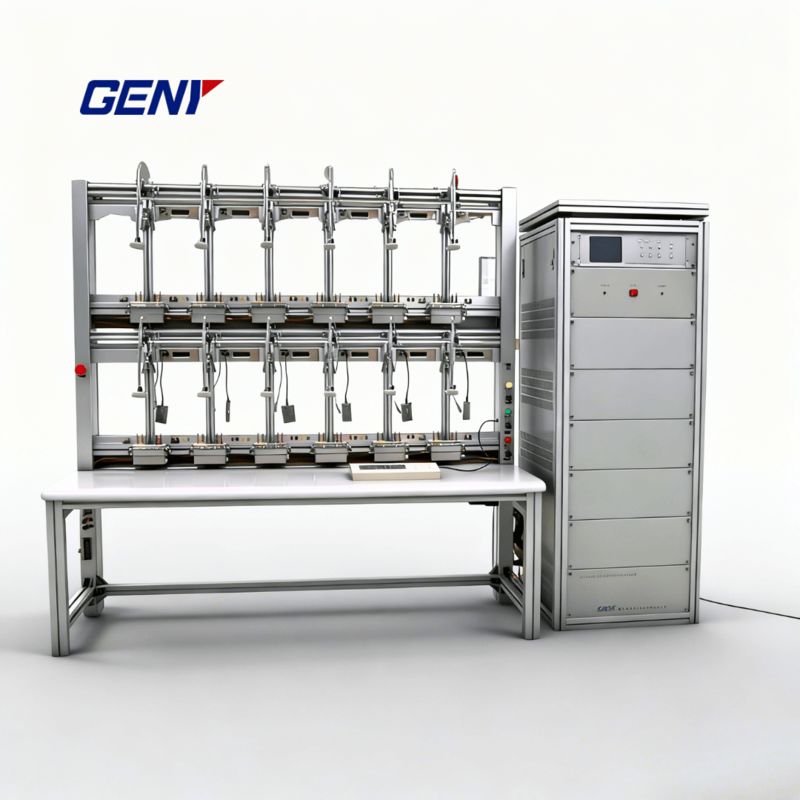

IEC-Compliant Automatic Meter Test Bench for Energy Meters

IEC-Compliant Automatic Meter Test Bench for Energy Meters

ブランド名: GENY
モデル番号: YC1891/3D
MOQ: 1個
価格: 交渉可能
支払条件: L/C、T/T、D/P
供給能力: 1か月あたり30個
詳細情報
起源の場所:
中国
証明:
ISO, CE
ドキュメント:
正確さ:
0.05 / 0.02 / 0.01%
出力電圧の電源:
Max.3*2000VA
現在の出力の電力:
最大3*2800VA
周囲温度:
-10°C - +40°C
パッケージの詳細:
合板ケース
供給の能力:
1か月あたり30個
ハイライト:

IEC-compliant automatic meter test bench

,

stationary energy meter test bench

,

automatic meter test bench with warranty

製品の説明
IEC-Compliant Automatic Meter Test Bench for Energy Meters

Our advanced energy meter test system utilizes state-of-the-art electronic measurement technology and a modular design, resulting in a fully automatic calibration solution. The system is fully compliant with the IEC 60736 standard and supports high-efficiency, multi-position testing for electric energy meters.
Designed for versatility, it can be seamlessly integrated with a variety of reference standards and power sources. This flexibility allows us to meet the specific requirements of a wide range of clients, including energy meter manufacturers, power utility companies, governmental metrology institutes, and calibration laboratories.

Key Features
  • IEC-Compliant Performance: Built strictly to IEC standards, supporting full testing coverage for active/reactive/apparent energy (all 4 quadrants) -- critical for global meter certification.
  • Durable Aluminum Alloy Construction: Lightweight yet robust, with corrosion resistance to ensure long-term stability in lab/industrial environments.
  • Fully Automatic Testing Capabilities:
    • Accuracy testing (4-quadrant, IEC-aligned)
    • Creeping (no-load) & starting current tests
    • Dial/register verification
    • Influence quantity testing (voltage, frequency, harmonic distortion)
    • Error repeatability analysis
    • Sub/odd harmonic testing (up to 41st order, IEC-standard)
    • Tamper & fraud monitoring
    • Simultaneous multi-position meter testing (high throughput)
  • Wide Voltage/Current Range: Supports up to 480V & 200A -- compatible with most global meter specifications.
  • Built-In Protection Functions: Overload, voltage short-circuit, and current open-circuit safeguards to protect both the test bench and DUTs.
  • User-Friendly Software: Intuitive interface for Windows XP/7/8/10+; includes dedicated modules for all energy meter types (no extra software required).
  • Flexible Data Management: Stored test data can be exported in multiple formats (CSV, PDF, etc.) for seamless integration with third-party tools.
