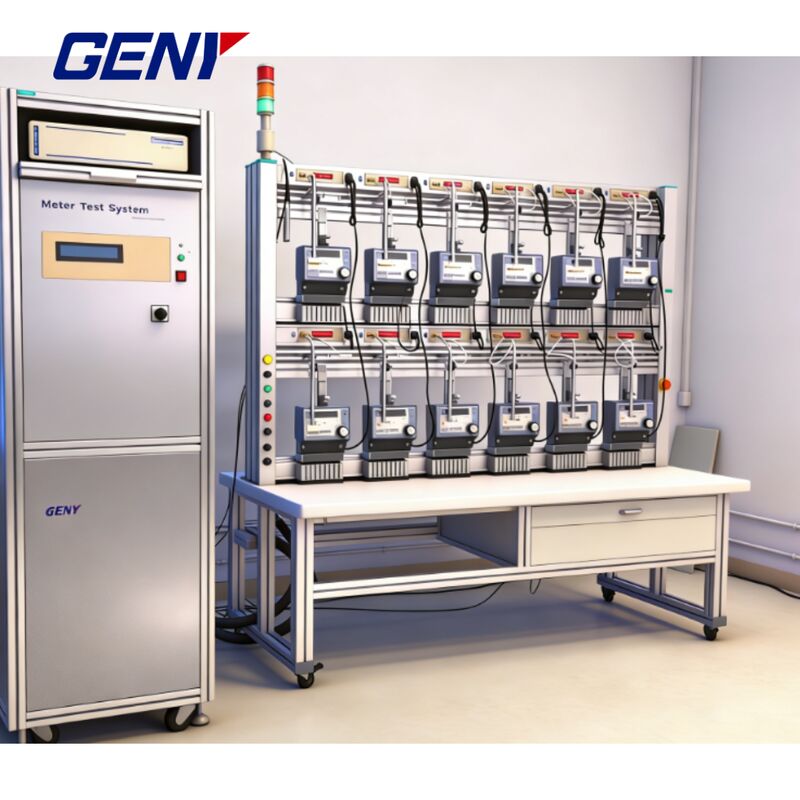

Three-Phase Energy Meter Test Bench – High Precision & Automatic

Three-Phase Energy Meter Test Bench – High Precision & Automatic

ブランド名: GENY
モデル番号: YC-1893D-ICT
MOQ: 1個
価格: 交渉可能
支払条件: L/C、T/T、D/P
供給能力: 100/年
詳細情報
起源の場所:
中国
証明:
ISO, CE
出力電流電力:
2800va(最大)
出力電圧電力:
2000va(最大)
解決:
範囲のフルスケール値の0.01%を超える
設定精度:
最終範囲値で 0.05% より良好 安定性
安定性:
0.005% /h(統合時間150年代)より良い
パッケージの詳細:
合板ケース
供給の能力:
100/年
ハイライト:

three-phase energy meter test bench

,

high precision meter test bench

,

automatic stationary meter test bench

製品の説明
Three-Phase Energy Meter Test Bench – High Precision & Automatic

Our Three Phase Electric Energy Meter Test Bench is a high-precision, reliable, and user-friendly solution designed for accurate testing and calibration of various types of electricity meters. It is widely used by power utilities, metrology institutes, and energy meter manufacturers worldwide.

Key Features of the Energy Meter Testing System
  • ICT installed at each meter position, allowing simultaneous testing of three-phase energy meters with closed current and voltage circuits (I-P links)
  • Supports mechanical meters, electromechanical meters, and electronic energy meters, with flexible automatic, semi-automatic, and manual operation modes
  • Compatible with multiple wiring configurations: 3P4W, 3P3W, and 1P2W energy meters
  • Multiple testing modes including active energy testing, reactive energy testing, and cross-connected reactive energy testing
  • Capable of testing meters with the same specifications but different meter constants at the same time, improving laboratory efficiency
  • Automatic disc mark positioning for mechanical meters, greatly enhancing testing speed and repeatability
  • Supports starting current test and creeping test, fully compliant with international standards
  • Comprehensive safety protection including overload protection, short voltage circuit protection, and open current circuit protection, ensuring safe operation
  • Synchronized swinging scanning heads simplify control and reduce operator workload
  • Made of high-strength aluminum alloy, lightweight, durable, and corrosion-resistant, suitable for long-term industrial use
  • Powerful and intuitive energy meter testing software, compatible with Windows 2000 / XP / 7 / 8 / 10, supporting:
    • Accuracy (error) testing
    • Harmonic testing
    • Demand testing
    • Influence testing (voltage, frequency, harmonics, etc.)
Why Choose Our Energy Meter Test Bench
  • High accuracy class up to 0.05, ensuring reliable and repeatable test results
  • Available in 3 to 48 meter positions, suitable for small labs and large-scale production lines
  • Extremely stable power source, guaranteeing precise measurement under all test conditions
  • Supports timing (clock) error testing for smart meters
  • Comprehensive influence testing of voltage, frequency, and harmonics, meeting IEC and international standards
  • Each meter position equipped with RS232 and Ethernet communication ports for smart meter testing
  • Optional tilt and impact test, ideal for quality control and certification testing
  • Over 18 months warranty, providing long-term confidence and reduced maintenance cost
