| ブランド名: | GENY |
| モデル番号: | SZ-03A-K6 |
| MOQ: | 1個 |
| 価格: | 交渉可能 |
| 支払条件: | L/C、T/T、D/P |
| 供給能力: | 100/年 |

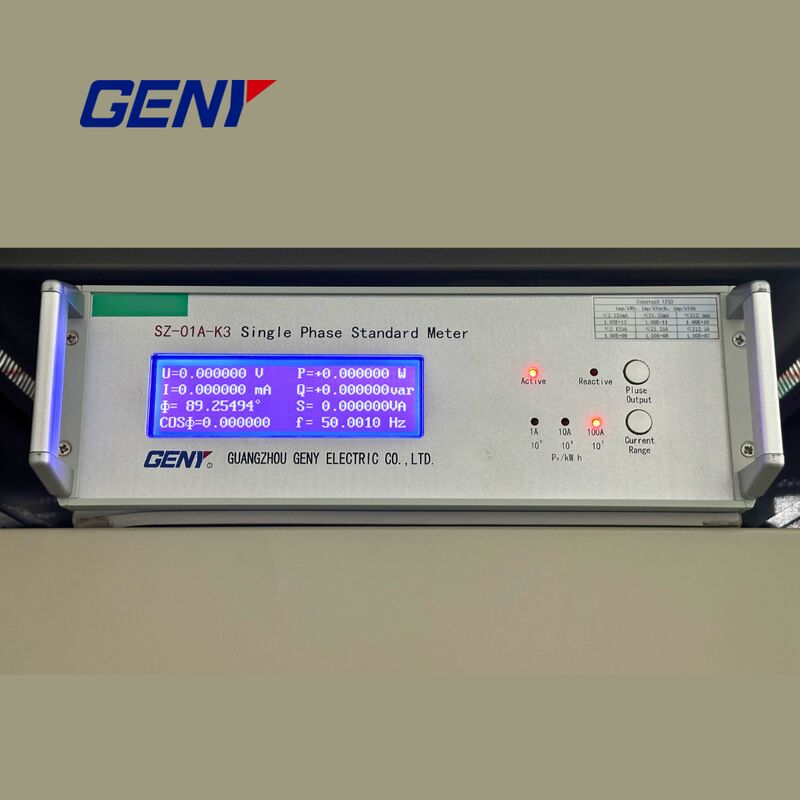

| Model | SZ01A-K3 |
|---|---|
| Test Voltage Range | 30V - 480V |
| Voltage Error | ±0.05% (30V - 480V) ±0.1% (5V - 50V) |
| Voltage Display Range | 5.000000V - 480.0000V |
| Test Current Range | 10mA - 120A |
| Current Error | ±0.05% (0.2A - 120A) ±0.1% (10mA - 0.2A) |
| Current Display Range | 1.000000mA-120.0000A |
| Active Power Error | ±0.05% (0.2A - 120A) |
| Reactive Power Error | ±0.1% (0.2A - 120A) |
| Apparent Power Error | ±0.1% (0.2A - 120A) |
| Phase Angle Range | 0º - 360º |
| Phase Angle Error | ±0.05º |
| Phase Angle Display Range | 0.000001º - 359.9999º |
| Frequency Range | 45Hz - 65Hz |
| Frequency Display Range | 45.0000 - 65.0000 |
| High Frequency Pulse Output | 1*109 (0.2A - 1A) 1*108 (1A - 10A) 1*107 (10A - 120A) |
| Low Frequency Pulse Output | 2*10-5*CH |
| Pulse Ratio | 1:1 |
| Output Level | 5V |
| Voltage Supply | 220V ± 10%, 50/60Hz ± 2Hz |
| Ambient Temperature | 10°C - 30°C |
| Influence of External Fields | ≤ 0.05% / mT |
| Relative Humidity | 45% - 75% |
| Dimensions (W*H*D) | 325*109*288 mm |
| Weight | 5.5 kg |
