| ブランド名: | GENY |
| モデル番号: | YCSS-101 |
| MOQ: | 1 個 |
| 価格: | negotiate rates |
| 支払条件: | T/T,L/C,D/P,T/T |
| 供給能力: | 5セット / 1ヶ月 |

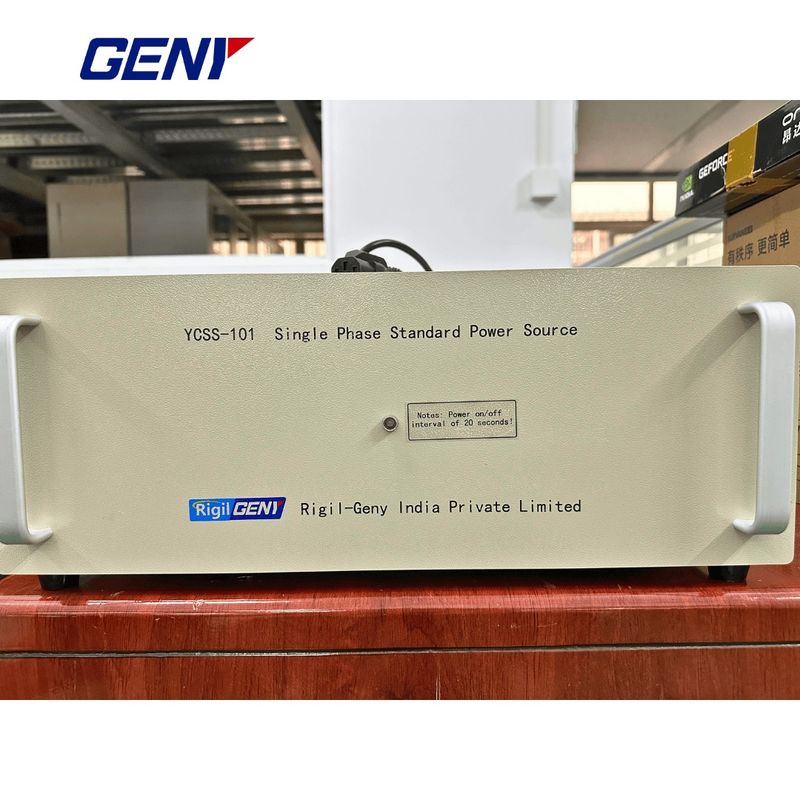

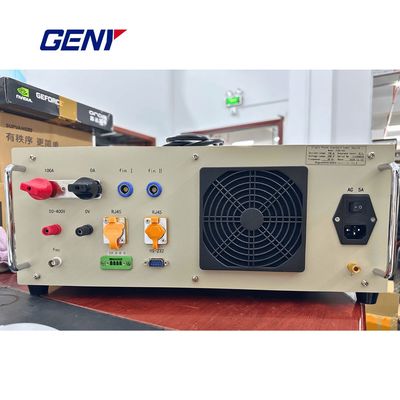

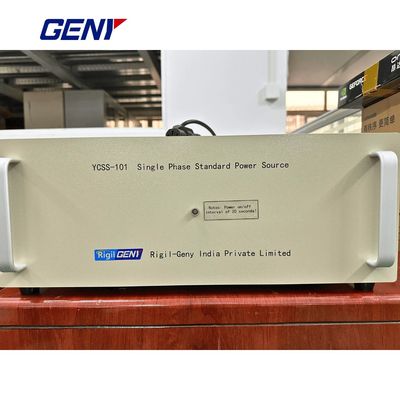

Guangzhou GENY Electric Co. Ltd. YCSS-101 Single Phase Standard Power Source is an essential calibration instrument for ammeters, wattmeters, energy meters, and power frequency phase meters, widely used in metrology departments, power utilities, industrial and mining enterprise calibration labs, and meter manufacturing facilities.
|
Voltage |
|||
|
Test voltage output |
0V-480V |
Resolution |
1mV |
|
Power of the voltage output |
Max.25VA |
Setting accuracy |
0.05% at 50-400V |
|
Stability |
0.03%/h (integration time 150s) |
Harmonics |
2nd-41st free programmable |
|
Distortion factor |
<0.2% for linear resistance load |
|
|
|
Current |
|||
|
Test current output |
1mA-120A |
Setting accuracy |
0.05% at 1mA-120A |
|
Power of the voltage output |
Max.120VA |
Stability |
0.003%/h (Integration time 150s) |
|
Resolution |
0.2mA |
Distortion factor |
<0.2% for linear resistance load |
|
Harmonics |
2nd-21st free programmable |
|
|
|
Phase angle |
Frequency |
||
|
Range |
0°-360° |
Range |
45Hz-65Hz |
|
Resolution |
0.001° |
Resolution |
0.0001Hz |
|
Setting accuracy |
0.005° |
|
|
|
Pulse output |
|||
|
High frequency output |
>20A FH=10^7; >2A FH=10^8; >0.2A FH=10^9 |
||
|
Pulse Input |
|||
|
Input channel |
2 |
||
|
Input frequency |
Max.100kHz |
||
|
Other |
|||
|
Voltage Supply |
220V±10% 50/60Hz±2Hz |
Dimensions (W×H×D) (mm) |
484x184×543 |
|
Ambient temperature |
-10°C-+40°C |
Weight (kg) |
15 |
|
Relative humidity |
35%-85% |
Conformity |
CE conform |
